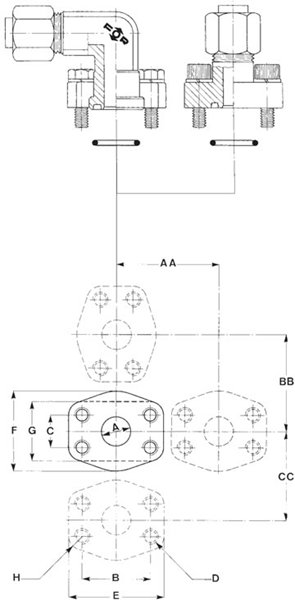

MEDIAPRESSIONE-STANDARDPRESSURE
dimensioni nominali
ports nom. dims. |
1/2 |
3/4 |
1" |
1" 1/4 |
1" 1/2 |
2" |
A |
max. |
13 |
19 |
25,5 |
32 |
38 |
51 |
B |
0,25 |
38,1 |
47,63 |
52,37 |
58,72 |
69,85 |
77,77 |
C |
0,25 |
17,48 |
22,23 |
26,19 |
30,18 |
35,71 |
42,88 |
D |
unc-2b |
5/16-18 |
3/8-16 |
3/8-16 |
7/16-14 |
1/2-13 |
1/2-13 |
D |
metric |
m8 |
m10 |
m10 |
m10 |
m12 |
m12 |
E |
|
54 |
65 |
70 |
79 |
94 |
102 |
F |
|
46 |
52 |
59 |
73 |
83 |
97 |
G |
min. |
33 |
41 |
48 |
54 |
64 |
76 |
H |
raggio
radius |
8 |
9 |
9 |
10 |
12 |
12 |
AA |
min. |
56 |
68 |
72 |
82 |
96 |
104 |
|
|
|
|
|
|
|
|
BB |
min. |
52 |
61 |
67 |
78 |
90 |
102 |
CC |
min. |
49 |
55 |
61 |
75 |
85 |
99 |
|
i.d. |
18,64 |
24,99 |
32,92 |
37,69 |
47,22 |
56,74 |
*o.ring |
w |
3,53 |
3,53 |
3,53 |
3,53 |
3,53 |
3,53 |
|
codice code |
0-35186 |
0-35250 |
0-35329 |
0-35377 |
0-35472 |
0-35567 |
press. max. eser. (MPa)
max. oper. pres. (p.s.i.) |
34,5 |
34,5 |
34,5 |
27,6 |
20,7 |
20,7 |
5000 |
5000 |
5000 |
4000 |
3000 |
3000 |
ALTAPRESSIONE-HIGHPRESSURE
dimensioni nominali
ports nom. dims. |
1/2 |
3/4 |
1" |
1" 1/4 |
1" 1/2 |
2" |
A |
max. |
13 |
19 |
25,5 |
32 |
38 |
51 |
B |
0,25 |
40,49 |
50,8 |
57,15 |
66,68 |
79,38 |
96,82 |
C |
0,25 |
18,24 |
23,8 |
27,76 |
31,75 |
36,5 |
44,45 |
D |
unc-2b |
5/16-18 |
3/8-16 |
7/16-14 |
1/2-13 |
5/8-11 |
3/4-10 |
D |
metric |
m8 |
m10 |
m12 |
m14 |
m16 |
m20 |
E |
|
56 |
71 |
81 |
95 |
113 |
133 |
F |
|
48 |
60 |
70 |
78 |
95 |
114 |
G |
min. |
38 |
48 |
54 |
60 |
70 |
86 |
H |
raggio
radius |
8 |
10 |
12 |
14 |
17 |
18 |
AA |
min. |
59 |
75 |
84 |
99 |
116 |
137 |
BB |
min. |
56 |
70 |
80 |
90 |
108 |
128 |
CC |
min. |
53 |
66 |
75 |
83 |
101 |
120 |
|
i.d. |
18,64 |
24,99 |
32,92 |
37,69 |
47,22 |
56,74 |
*o.ring |
w |
3,53 |
3,53 |
3,53 |
3,53 |
3,53 |
3,53 |
|
codice code |
0-35186 |
0-35250 |
0-35329 |
0-35377 |
0-35472 |
0-35567 |
press. max. eser. (MPa)
max. oper. pres. (p.s.i.) |
41,4 |
41,4 |
41,4 |
41,4 |
41,4 |
41,4 |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
*LE GUARNIZIONI VENGONO ESEGUITE IN MESCOLA NBR °SHORE-A 85 +5/-0 (TEMPERATURA MASSIMA D’IMPIEGO -20°C +120°C).
PER APPLICAZIONI SPECIALI PREGASI CONSULTARE IL NOSTRO UFFICIO TECNICO.
