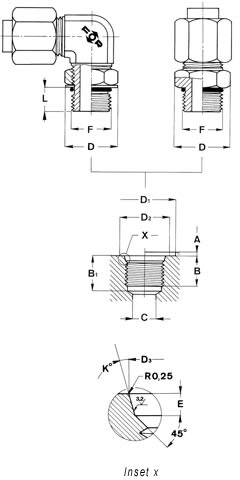

METRICO-METRIC
F
dimensioni
dimensions |
10x1 |
12x1,5 |
14x1,5 |
16x1,5 |
18x1,5 |
20x1,5 |
22x1,5 |
27x2 |
33x2 |
42x2 |
48x2 |
øest nom. od nom. |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
27 |
33 |
42 |
48 |
øint min. id min. |
8,9 |
10,3 |
12,3 |
14,3 |
16,3 |
18,3 |
20,3 |
24,8 |
30,8 |
39,8 |
45,8 |
A max. |
1 |
1,5 |
1,5 |
1,5 |
2 |
2 |
2 |
2 |
2,5 |
2,5 |
2,5 |
B min. |
10 |
11,5 |
11,5 |
13 |
14,5 |
14,5 |
15,5 |
19 |
19 |
19,5 |
22 |
B1 min. |
11,5 |
14 |
14 |
15,5 |
17 |
17 |
18 |
22 |
22 |
22,5 |
25 |
C min. |
4,5 |
6 |
7,5 |
9 |
11 |
12 |
14 |
16 |
23 |
30 |
36 |
D |
14,5 |
17,5 |
19,5 |
22,5 |
24,5 |
27,5 |
27,5 |
32,5 |
41,5 |
50,5 |
55,5 |
D1 min. |
16 |
19 |
21 |
24 |
26 |
27 |
29 |
34 |
43 |
52 |
57 |
D2 min. |
14,5 |
17,5 |
19,5 |
22,5 |
24,5 |
25,5 |
27,5 |
32,5 |
41,5 |
50,5 |
55,5 |
D3 +0,1 -0 |
11,1 |
13,8 |
15,8 |
17,8 |
19,8 |
21,8 |
23,8 |
29,4 |
35,4 |
44,4 |
50,4 |
E +0,4 -0 |
1,6 |
2,4 |
2,4 |
2,4 |
2,4 |
2,4 |
2,4 |
3,1 |
3,1 |
3,1 |
3,1 |
K +1° -1° |
12° |
15° |
15° |
15° |
15° |
15° |
15° |
15° |
15° |
15° |
15° |
L rif. |
9 |
10,5 |
10,5 |
12 |
13,5 |
13,5 |
14 |
17 |
17 |
17,5 |
20 |
*o.ring |
0-15080 |
0-23093 |
0-23113 |
0-23133 |
0-23153 |
0-23173 |
0-23193 |
0-29235 |
0-29297 |
0-30380 |
0-30440 |
coppia di serraggio
assembly torque (N.m)
|
20 |
35 |
45 |
55 |
70 |
80 |
100 |
180 |
310 |
330 |
420 |
press. max. di esercizio
(bar) raccordi diritti
max. oper. pres. (bar)
straight connectors
|
630 |
630 |
630 |
630 |
630 |
420 |
420 |
420 |
420 |
280 |
280 |
press. max. di esercizio
(bar) raccordi orientabili
max. oper. pres. (bar)
adjustable connectors |
420 |
420 |
420 |
420 |
420 |
330 |
420 |
420 |
350 |
280 |
250 |
*Standard O-ring: NBR °SHORE-A 85 +5/-0(Max. temp. rang. -20°C +120°C).
Additional compounds available on request. For special applications, please contact our technical department.
